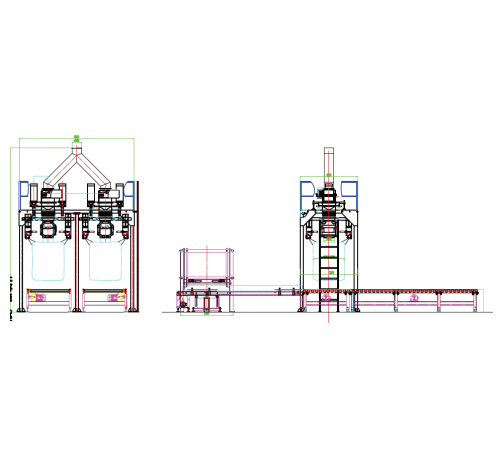

Dual-station Packing Scale for Grain Logistics Transportation LCS-1000WHS

Brife instruction: This equipment is mainly designed for grain special purpose. It adopts gravity feeding mode, automatic bag filling, automatic decoupling, automatic pier bag and platform structure integrated design. The structure is small and easy to install. It has the characteristics of high weighing accuracy, simple installation, convenient operation, strong reliability and complete functions. It is suitable for automatic quantitative and fast packaging of large bags in grain industry, and can provide special design and production for special users. It can form an automatic quantitative packaging production line with pallets, conveyor rollers and other equipment.

Product feature:

Using gravity weighing integral structure

The equipment has the functions of automatic bag filling, automatic decoupling and automatic pier bag.

Design of cutting and feeding with multi-stroke arc gate

Output data and information reports of shift production, daily production and monthly production;

It has standard communication interface and multiple recording functions.

The equipment is equipped with a dust collecting port, which is convenient for connecting with the dust collecting mechanism.

Suitable industry: Mainly applicable to the grain industry

Performance parameter:

Packaging accuracy: ≤±0.2%

Packaging speed: 12～20bags/h(depending on material feature)

Weighing range: 500～1000kg/bag

Material moisture content: ≤10%

Relative humidity: ≤90RH%(no condensation)

Suitable temperature range: ～10℃～45℃;

Control power supply: AC220V(﹣15%/+10%)/50HZ(±10%)

Power supply: AC380V(﹣15%/+10%)/50HZ(±10%)

Power: about 1.1KW

Pressure: 0.4MPa～0.6MPa

Air consumption: 0.3m³/h

This equipment can be used in connection with the following equipment:

An automatic quantitative packaging production line is composed of empty pallet storehouse, empty pallet conveyor and roller conveyor or chain conveyor.
