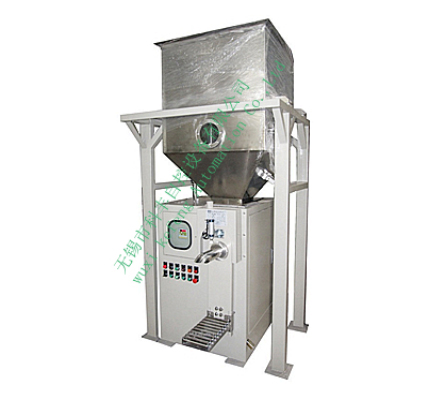

Screw Valve Gate Scale LCS~25WHX

It is mainly suitable for automatic quantitative packaging of valve pockets for fine powder materials. The device consists of standard communication interface and multiple recording functions, printing real-time reports and multiple records. It can output shift production, daily, monthly production and other data information reports.

Product feature:

Using air-flotation screw feeding mode, the discharge is uniform and stable.

Unique air-return design to ensure smooth packing of materials

Design of shear cutting door to ensure weighing accuracy

Automatic pouring device, safe and convenient operation

Output data and information reports of shift production, daily production and monthly production;

It has standard communication interface and multiple recording functions.

Suitable industry: Cement, dry mortar, starch packaging and other industries

Performance parameter:

Packaging accuracy: ≤±0.5%

Packaging speed: 180～240bags/h(depending on material feature

Weighing range: 15～25kg/bag

Material moisture content: ≤13%

Relative humidity: ≤90RH%(no condensation)

Suitable temperature range: ～10℃～45℃;

Control power supply: AC220V(﹣15%/+10%)/50HZ(±10%)

Power supply: AC380V(﹣15%/+10%)/50HZ(±10%)

Power: about 6KW

Pressure: 0.4MPa～0.6MPa

Air consumption: >15m³/h

This equipment can be used in connection with material storage system, pulse dust removal device and palletizing equipment.
