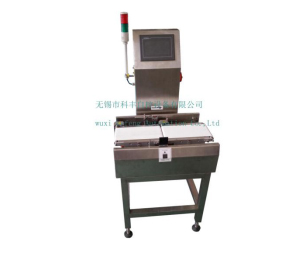

Dynamic weighing scale (sorting scale)
Release date: 2019/4/25 9:55:29 Visits: 1062
Function: On-line weight reexamination will be carried out on the packages entering the package.
Rack Material: 304 Material, Carbon Steel Material; Thickness: Main Material 3mm, Baffle Plate 1.5mm
Size: Bandwidth Size 600mm
Control Instruments: XK3201-F701, TOLEDO
Optional: PLC, touch screen (Delta, Siemens, Kunlun Tongtai)
Motor brand: Chengbang, Shuntian, SEW, Jiamusi (explosion-proof)
Power: 0.75KW、1.1KW
Foot: 350mm ~ 750mm (can be increased) (304 material, Q235 material)
Weight check range (per package):<50g,<500g,<5Kg,<25Kg,<50Kg,<100Kg,>100Kg
Accuracy requirements: <0.1%, <0.2%, <0.3%, <0.5,>0.5%
On-line detection speed: <5 packets/minute, <10 packets/minute, <15 packets/minute, <20 packets/minute
Photoelectric: Domestic Brand, Omron
Note: If the on-line removal mechanism is not installed, the dual-color alarm lamp will be installed. Errors occur and stop alarm is processed.
Dynamic weighing scale (sorting scale)
